Former CCNA Service Provider: Skills and Current Alternatives

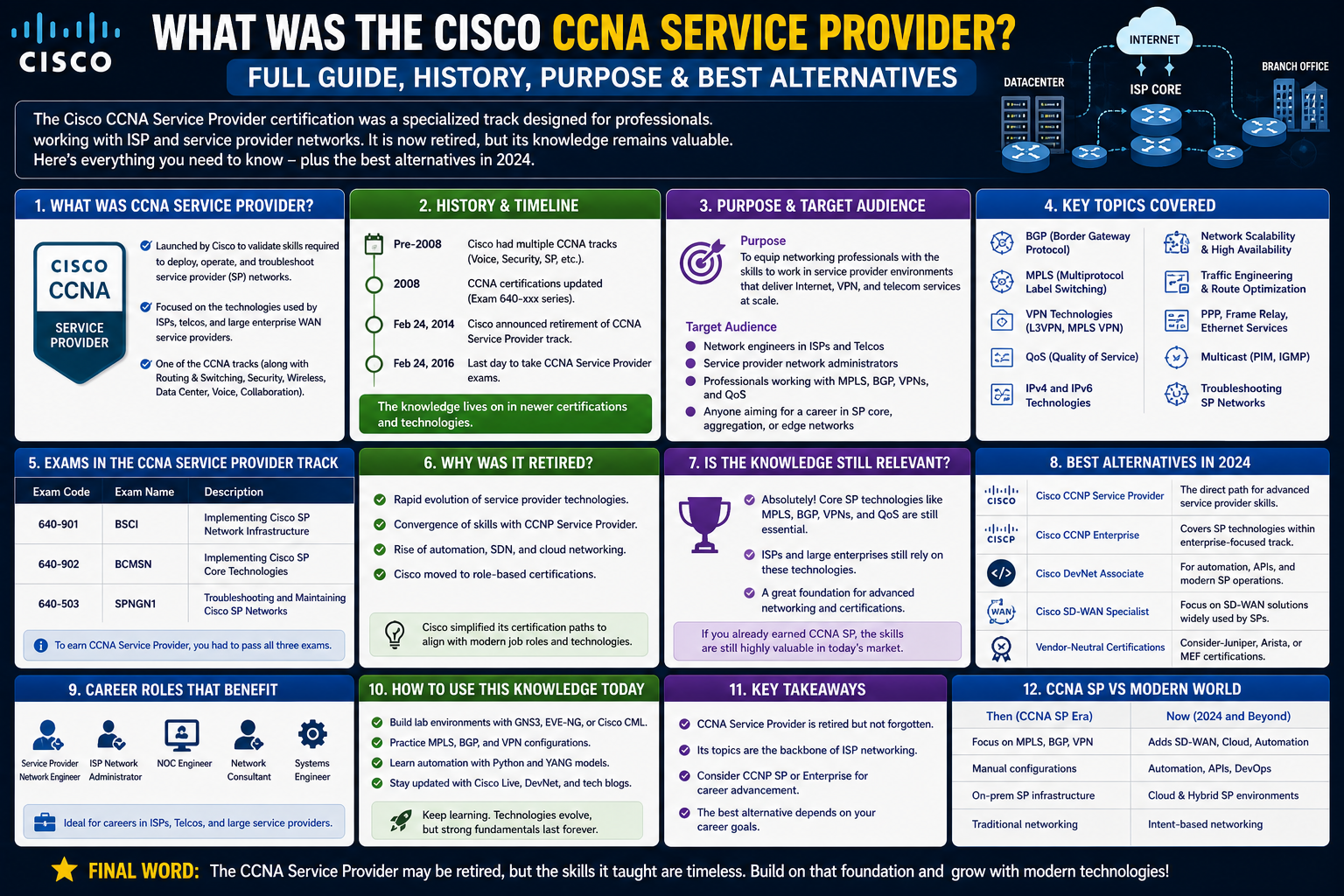

Cisco CCNA Service Provider was a historical certification specialization. It should not be confused with the current Cisco CCNA 200-301 associate networking credential or the current CCNP Service Provider route. This page explains what service-provider networking skills remain worth learning and how to map them to today’s exams without implying a retired pathway is still bookable.

What distinguishes provider networks

A service provider must transport traffic for many customers while controlling route distribution, segmentation, quality of service, resilience and operations at scale. Compared with a small enterprise, the routing policy and administrative boundaries are often more complex, and a design change can affect many independently owned services.

Start with protocols and forwarding evidence

Strong fundamentals include IPv4 and IPv6 addressing, OSPF or IS-IS, BGP policy, MPLS labels, VRF-based segmentation, route reflectors and the relationship between underlay reachability and customer service delivery. Learn to trace one prefix from customer attachment to remote reachability.

Distinguish the active pathways. Cisco CCNA 200-301 is a useful networking foundation. Cisco CCNP Service Provider currently uses Cisco 350-501 SPCOR as its core examination alongside a qualifying concentration; expert candidates pursue the applicable CCIE Service Provider written and lab requirements. Verify current codes directly with Cisco rather than inferring them from a former CCNA Service Provider title.

Verify transport, VPN control plane and customer policy independently

For an MPLS Layer 3 VPN exercise, label three separate questions in the topology. First, can the provider-edge routers reach each other’s loopback addresses in the underlay? Second, is the customer’s VPN prefix advertised with a route target that its destination VRF imports? Third, does the local forwarding table have a usable transport path to the remote provider edge? A healthy BGP session answers none of these questions by itself.

Test failure modes one at a time: withdraw the underlay route to a next hop, remove a route-target import and alter a customer-facing ACL. Record the different resulting control-plane and forwarding symptoms. Core service-provider knowledge has practical value when an engineer can determine which boundary failed and restore service without making a disruptive change to unrelated customers.

Practice a provider troubleshooting scenario

  • Assign separate customers to distinct VRFs or routing domains.
  • Establish provider-core reachability with a documented IGP.
  • Verify the appropriate VPN route advertisement and import controls.
  • Check transport and forwarding labels rather than stopping at BGP session state.
  • Deliberately break a route target or next hop, then diagnose and reverse it.

Understand separation between customer services and provider transport. An MPLS VPN can have a healthy provider underlay but still fail customer traffic if route-target import or PE-to-CE policy is wrong. Troubleshoot the customer route, the VPN route and the transport path in that order. Do not assume an established BGP session proves a usable forwarding entry.

A service-provider engineer should also explain what occurs during maintenance of a redundant core link. Record the relevant prefixes, label forwarding behavior and fault boundaries before changing a route. An unverified diagram is a poor substitute for route-table and forwarding observations.

The goal is to separate transport reachability from customer routing, identify policy boundaries and explain why a service is or is not visible. Those skills transfer even when specific Cisco certification families change names.

Separate retired service-provider entry exams from usable knowledge

CCNA Service Provider was a historical entry program, not a 2026 Cisco exam that candidates can still schedule under that name. Its useful foundation includes IP routing, subnetting, basic service-provider topology, MPLS vocabulary and fault isolation. Readers should retain those technical concepts while replacing obsolete booking advice with current pathways matched to actual job responsibilities.

An access technician troubleshooting customer edge connectivity may benefit first from current CCNA basics. A network engineer responsible for MPLS cores or policy-based traffic engineering has different needs and may aim for Cisco’s current CCNP Service Provider certification path. Do not present the old CCNA Service Provider name as a mandatory prerequisite of that professional track.

Study a carrier-style failure without claiming expert scope

Set up a small lab with customer-facing interfaces, an edge router and a reachable service. Record expected reachability and a simple routing table. Break one advertised prefix or disable a test link, then trace the affected route from the customer edge through the provider boundary. Explain which observation proves the problem lies with local access rather than the provider core.

For more advanced study, distinguish core written objectives from concentration skills and expert-level practical troubleshooting. Maintain a migration worksheet linking each historical topic to its present-day successor, and confirm the current exam codes directly from Cisco.

Work a service-provider VPN failure end to end

Create two customer sites connected through separate provider-edge devices and a routed provider core. Assign unique customer-facing subnets and decide whether the provider uses a Layer 3 VPN, plain IP routing or another service model before drawing the topology. For an MPLS L3VPN, record the customer VRF on each PE, the route distinguisher used to make overlapping VPN routes unique and the route targets that determine which VRFs import each prefix. These identifiers solve different problems: the RD changes route identity while RTs control distribution policy.

First break the underlay. Remove PE loopback reachability or disrupt a transport next hop while leaving the customer VRF configurations intact. Observe that MP-BGP may still retain some previously learned VPN information even though the transport label path is unusable. Restore the underlay, then remove a route-target import on one remote VRF. The provider-core path can be healthy while one customer prefix never becomes active in the intended VPN. Document how these two faults produce different evidence.

Next verify forwarding after the control plane appears correct. Check that the customer route was learned from the CE, exported from the ingress PE, received by the remote PE, imported into the remote VRF and accompanied by usable forwarding information. Confirm the reverse direction too. A successful BGP neighbor state alone proves neither route import nor a complete label-switched forwarding path. This is the central troubleshooting distinction that separates service-provider practice from memorizing protocol names.

For a non-MPLS provider service, the same discipline still applies: identify the customer boundary, provider reachability, policy scope and return path. Explain whether the failure affects one prefix, one VPN, one edge or the entire core. Those distinctions remain useful even without an active CCNA Service Provider credential. A learner pursuing Cisco’s current track should use CCNA 200-301 for foundation and the current CCNP Service Provider/CCIE Service Provider requirements for more specialized objectives.

Connect overlay policy to real troubleshooting boundaries. Service-provider operations involve more than MPLS. Even where the operator uses a routed IP core or an SD-WAN-based customer service, the problem can be separated into provider reachability, customer route distribution and forwarding policy. Define what is guaranteed by the transport and what is a property of the customer service. A provider may meet its core reachability target while one customer’s route target, prefix filter or CE routing session breaks the customer’s application. The architecture should make those independent responsibilities visible in the troubleshooting record.

A change record should name the affected customer, VPN or routing instance and include a test that proves another customer’s service was not unintentionally altered. When route reflection or policy aggregation is used, changes can reach many PEs even if the engineer edited one central controller. Use route counts, a chosen test prefix and specific import/export policy evidence, not simply an all-neighbors-up status. Confirm the route is present and usable in the remote VRF and that the packet takes the intended forwarding path.

After a failure is restored, document the distinguishing symptom. An underlay fault affected transport reachability across multiple customers; a route-target fault affected an isolated VPN; a PE-to-CE filter affected advertised prefixes for one attachment. That symptom map is reusable operational knowledge. It is also a better foundation for Cisco’s contemporary CCNP Service Provider objectives than the discontinued CCNA Service Provider name in the original title.

Record control-plane and data-plane symptoms separately

For every simulated VPN fault, record both the route’s advertisement or import status and the actual forwarding-table result. A route reflector can advertise a prefix without creating transport reachability to its next hop, and a PE can have valid transport labels while rejecting one customer’s VPN route because of policy. Keeping those two evidence trails separate prevents broad routing changes from being used to fix a tenant-specific issue and is central to reliable service-provider operations.

Account for the customer edge

When a VPN route appears healthy inside the provider cloud but the customer reports an outage, inspect the PE-to-CE exchange and the customer gateway as a separate stage. The customer may have a prefix filter, incompatible route advertisement or missing return route outside the provider’s VPN control plane. Record where the path stops working before assigning fault to the MPLS core. A good engineer can explain which evidence identifies the provider boundary and which must be supplied by the customer’s network team. In an exercise with overlapping customer address space, configure distinct VPN routing instances and verify the import policy for each. A route distinguisher gives the two otherwise identical prefixes distinct VPN route identities; route targets and import policy decide where those routes may appear. Show that neither customer can reach the other through an unintended import. Restore the intended policy and preserve the before-and-after route details as evidence of isolation.
