CPU Cache Explained: L1 vs L2 vs L3

Processors are much faster at executing instructions than main memory is at delivering every instruction and data value on demand. CPU caches narrow that gap by keeping recently or predictably useful information close to the cores that need it. The names L1, L2, and L3 describe levels in this memory hierarchy, not network layers or three categories of system RAM. Understanding their roles helps explain why two processors with similar clock speeds or core counts can behave differently on databases, compilers, games, and other real workloads.

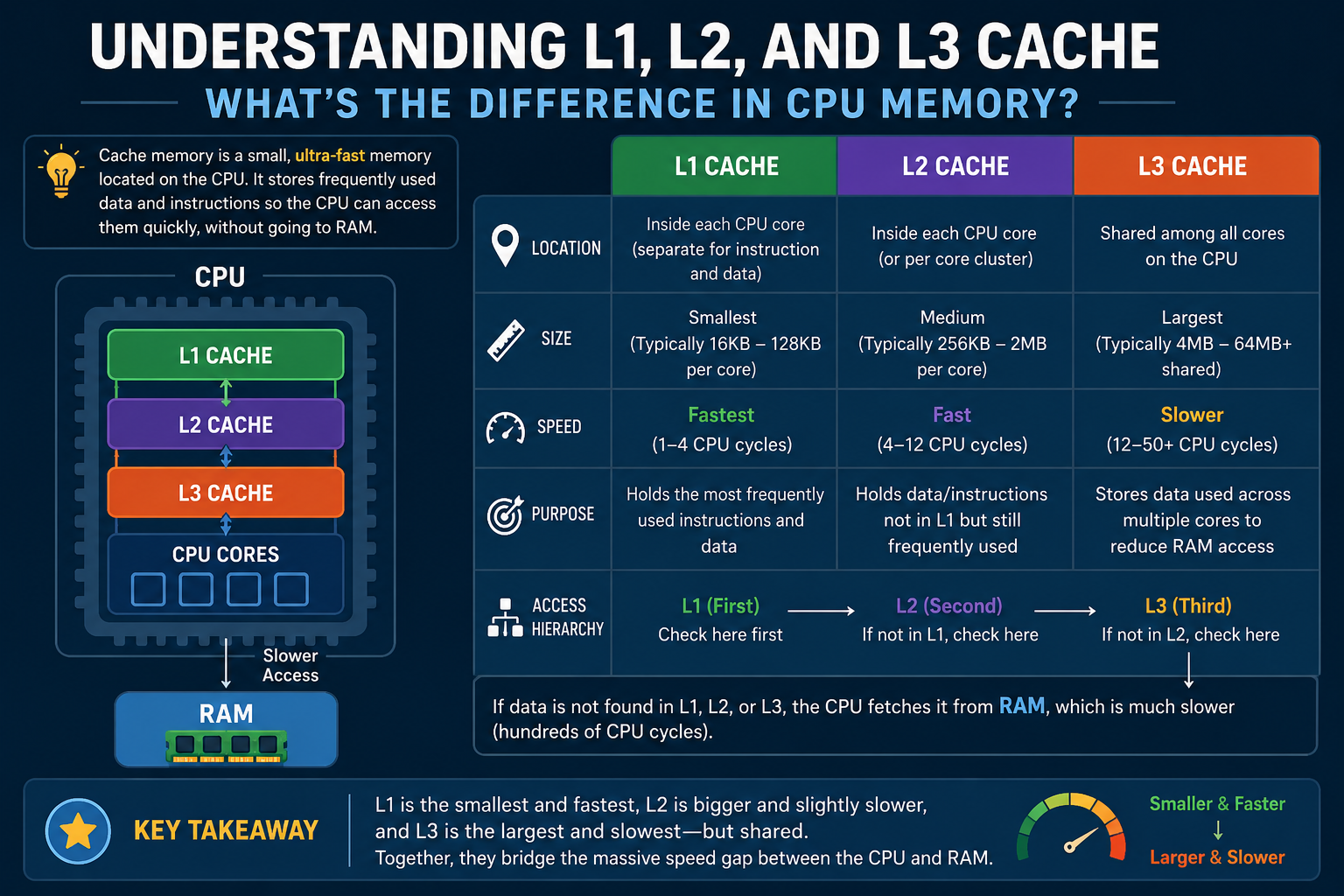

The short version is that L1 is generally the smallest and fastest cache nearest a core, L2 provides a larger secondary store, and L3 is commonly a larger last-level cache shared by some or all cores. Those patterns are useful starting points, but they are not universal specifications. Cache sizes, sharing boundaries, inclusivity, access latency, and replacement behavior depend on the processor family and microarchitecture.

Why a CPU needs caches between its cores and RAM

A modern CPU issues instructions and operates on data at a rate that would stall constantly if every load required a trip to external DRAM. A cache holds copies of memory blocks in fast on-chip storage, usually SRAM, so repeated accesses can be served with much lower delay than main memory. When the requested block is already present, the access is a cache hit. When it is absent, a cache miss causes the processor to request the information from another cache level or, eventually, DRAM.

Programs gain from two forms of locality. Temporal locality means that data used recently is likely to be used again, as with a counter updated in a loop. Spatial locality means that values near a recently accessed address are likely to be needed soon, as when code processes consecutive elements in an array. Caches move and track blocks called cache lines rather than treating each individual variable as an unrelated object. A common line size is 64 bytes, although software should not assume every processor uses the same geometry.

A larger cache does not automatically produce a faster computer. What matters is whether the program’s active data and instructions can be reused before they are evicted, and whether the processor can find them quickly. Latency, bandwidth, instruction-level parallelism, prefetching, and the working set all influence how much benefit the cache provides.

L1 cache: the low-latency first stop

L1 cache sits closest to execution resources and is designed for very fast access. Many CPU designs separate it into an L1 instruction cache (L1I), which supplies instructions, and an L1 data cache (L1D), which supplies values for loads and stores. Splitting them helps the core fetch instructions and access data without always competing for the same first-level structure.

Because low latency is central to L1’s purpose, its capacity is limited. A tight numerical loop that repeatedly visits a small array may obtain most of its data from L1D, while a program with scattered memory accesses or a large footprint may miss more often. Instruction-cache misses can also matter: code with a large or irregular instruction footprint may spend more time retrieving instructions instead of executing them.

On many processors each core has its own L1 caches. The exact boundaries can differ with simultaneous multithreading and the manufacturer’s design. Two logical threads running on one physical core may compete for resources associated with that core, but two separate cores typically do not use one common L1 data cache. This distinction matters when comparing performance of one busy thread against a heavily loaded system.

L2 cache: capacity without abandoning proximity

L2 is usually larger than L1 and has a higher access cost, making it a second opportunity to satisfy a request before seeking data farther away. A block may miss L1 but still be in L2, which is much less disruptive than fetching it from DRAM. Workloads with modestly larger hot data sets can benefit substantially from a well-sized L2.

Many modern server and desktop CPUs have an L2 cache associated with an individual core, though older and specialized designs can use other arrangements. The size of L2 should not be compared in isolation across brands: one architecture can offset smaller capacity with better prefetching or lower miss penalties, while another may emphasize different workload characteristics. Cache associativity and replacement strategy can also determine whether frequently used blocks compete for the same locations.

For software developers, the practical message is not to hand-tune every loop to a particular advertised capacity. It is to recognize that data structures with compact, repeated access patterns tend to use the hierarchy more efficiently than structures that require many unrelated pointer jumps. Measure before assuming a larger L2 will fix a bottleneck.

L3 cache: a larger last-level buffer and a shared resource

L3 is often the last cache level before external memory. It tends to be substantially larger than L1 or L2 and has higher latency. On many multicore processors an L3 domain is shared by several cores, allowing requests from those cores to benefit from a common pool of cached data. The precise sharing boundary matters: one processor package may contain multiple chiplets or cache domains rather than one uniform cache shared equally by every core.

The shared nature of L3 has a benefit and a cost. Threads that reuse overlapping data can avoid some DRAM accesses, but unrelated applications can evict one another’s cached blocks. This can create a noisy-neighbor effect in busy workstations, database servers, and hosts running several virtual machines. Scheduling, memory placement, and the size of each workload’s active set can change performance even when the amount of installed RAM stays constant.

Marketing figures such as “36 MB L3” are useful product specifications but not direct guarantees of application speed. A gaming workload, for example, might benefit noticeably from a larger last-level cache when it repeatedly accesses data that would otherwise reach DRAM. A streaming task that reads enormous data sets only once may see a smaller improvement. On-chip cache capacity should therefore be evaluated alongside core design, memory subsystem, and the software being run.

How cache hits, misses, and coherence affect performance

It is tempting to picture L1, L2, and L3 as simple nested buckets, but real cache hierarchies have implementation details that change their behavior. Some processors use inclusive policies, in which data in a lower-level cache must also be represented in a higher-capacity cache; others use exclusive or non-inclusive policies. Cache lookup paths, victim caches, prefetchers, and the handling of dirty data vary. A diagram can explain the broad concept without accurately describing every specific CPU.

Three broad miss categories are useful for reasoning. A compulsory miss occurs when data is accessed before it has been brought into the cache. A capacity miss arises because the active set exceeds available storage. A conflict miss occurs when multiple blocks compete for cache positions because of how addresses are mapped to cache sets. These categories are diagnostic models, not a claim that an operating system will classify every hardware event perfectly.

Multicore processors must also maintain a coherent view when cores read and modify shared memory. Hardware cache-coherence mechanisms track which copies of a cache line are valid and who can write to it. Coherence is not the same thing as application-level synchronization: correct concurrent programs still need suitable atomics, locks, or ordering rules. A particularly expensive pattern is false sharing, where two threads update different variables that happen to occupy the same cache line. The variables are logically separate, yet the line may repeatedly move between cores.

Translation lookaside buffers (TLBs) are another performance-relevant structure, but they cache address translations rather than replacing L1, L2, or L3 data caches. Likewise, an operating system’s file page cache holds disk-backed data in main memory; it should not be confused with the CPU’s on-chip hierarchy.

Improving locality in real code and systems

Cache-aware optimization starts by measuring a representative workload and locating where it actually waits. Sequential array traversal often has better spatial locality than following a long chain of separately allocated pointers. Reusing data while it remains hot can be more efficient than loading the same large structure repeatedly. In scientific computing and analytics, loop blocking or tiling can improve reuse by processing smaller portions of a matrix before moving on.

Data layout also matters. An array of structures can be convenient when code routinely needs every field of each object. A structure of arrays may make more sense when a vectorized operation repeatedly reads just one or two fields across many objects. Neither design is universally faster; allocation patterns, compiler optimization, SIMD access, and how the application uses the data determine the result.

On a busy server, memory locality must be considered at more than one level. Non-Uniform Memory Access (NUMA) systems can have substantially different costs for local and remote DRAM, and a thread moved between CPU cores can lose some cache warmth. Pinning threads or constraining virtual-machine placement is not automatically beneficial: it can improve locality for a stable workload but reduce scheduling flexibility or load balancing elsewhere. A repeatable benchmark is needed.

For application profiling, use tools appropriate to the platform, such as Linux perf, processor vendor profilers, or development-environment performance analyzers. Hardware-counter names and whether “cache misses” includes one level or multiple levels differ among CPUs. Interpret hit-rate figures together with instructions retired, cycles, memory bandwidth, elapsed time, and the actual user-visible result.

What L1, L2, and L3 mean when choosing a processor

Cache specifications are one input to CPU selection, not a replacement for workload testing. A processor with more L3 may be attractive for some latency-sensitive applications, while a different processor may win by having faster cores, more memory channels, stronger vector execution, or better efficiency under sustained load. Even two CPUs with identical cache sizes can behave differently because their cache topology and microarchitecture differ.

When evaluating a server CPU, compare representative performance tests, memory capacity and bandwidth, NUMA layout, energy consumption, upgrade constraints, and price as well as cache. For virtualization, check how the intended hypervisor schedules workloads across cache domains and whether shared-cache contention appears under realistic concurrency. For software compilation, database queries, and simulations, use the actual tools and data sizes that will run in production.

A CPU stepping identifies a hardware revision; it does not by itself reveal whether an application will be cache-limited. When comparing revisions or processor families, consult the manufacturer’s technical specifications and errata rather than interpreting cache capacity as an isolated performance score.

You can inspect the reported cache hierarchy in processor specification sheets and operating-system tools. Linux utilities such as lscpu and the CPU cache information under /sys/devices/system/cpu/ may expose level, size, type, and sharing information. Windows Task Manager and other system-information utilities often summarize L1, L2, and L3 capacities. Check whether a displayed total is per core, per cache domain, or across the processor before comparing systems.

The useful takeaway is straightforward: L1 aims to deliver immediate access to the hottest instructions and data, L2 provides a larger nearby fallback, and L3 helps absorb a larger active set before the CPU needs DRAM. Actual performance depends on how a workload moves through that hierarchy. Better locality, measured under realistic conditions, is usually more meaningful than ranking processors by one cache-size number.
